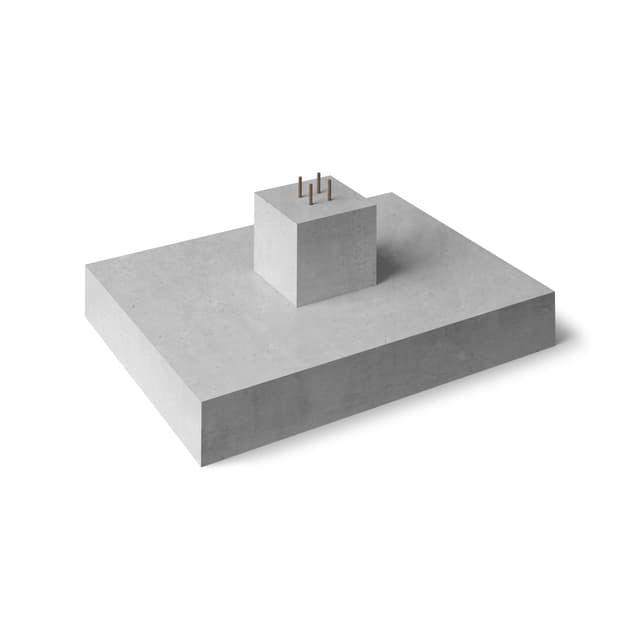

Stopa fundamentowa - profil

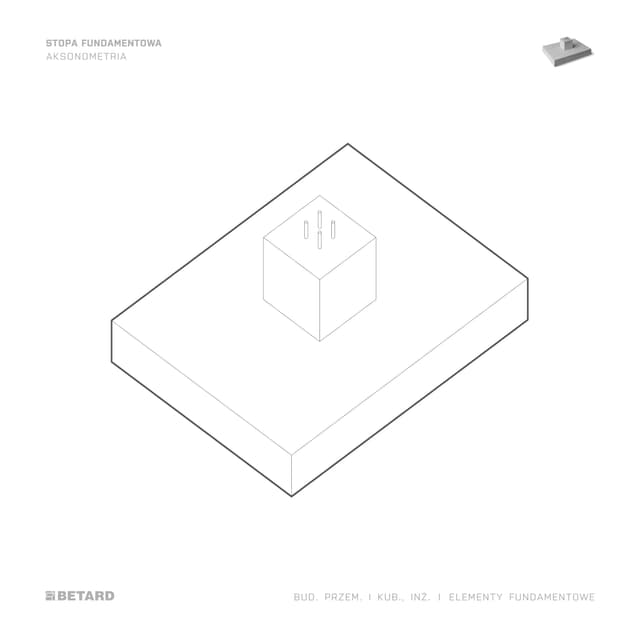

Stopa fundamentowa - aksonometria

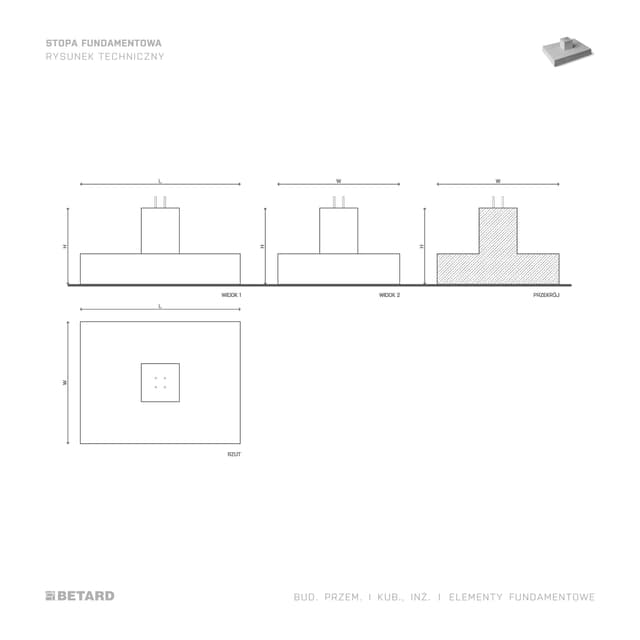

Stopa fundamentowa - rzut

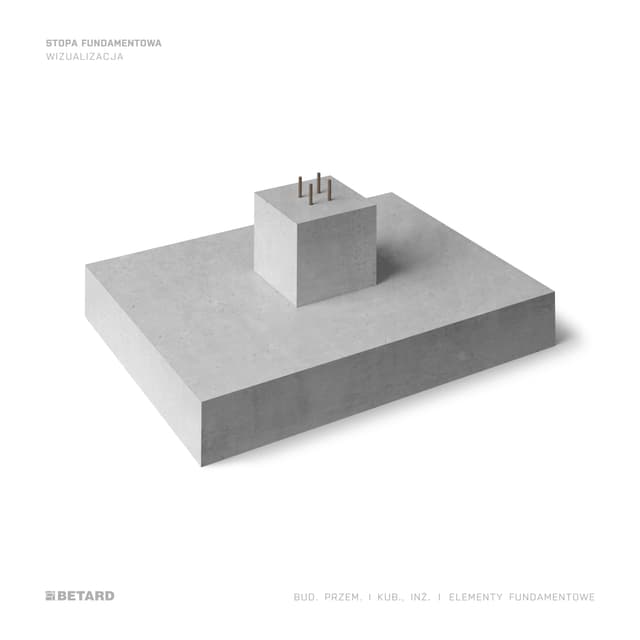

Stopa fundamentowa - wizualizacja

SCROLL PHOTO

  • Stopa fundamentowa - aksonometria
  • Stopa fundamentowa - rzut
  • Stopa fundamentowa - wizualizacja

    + WIĘCEJ

Foundation elements

Footing


Prefabricated footings are structural elements that transfer the loads of the building to the ground. They are characterised by high strength and durability. They come in a variety of shapes and sizes to suit the specifics of the project. Thanks to prefabrication, they stand out for their precision workmanship and ease of installation. Depending on requirements, they can be fitted with accessories to facilitate connection to other elements of the structure.









Use

  • → Sports stadiums
  • → Event halls
  • → Car parks

SHARE:

  • Udostępnij pocztą
  • Udostępnij linkedin
  • Udostępnij facebook

PRODUCT FEATURES

  • Ikona przedstawiająca symbol strzałki

    Speed

    Short lead times

  • Ikona przedstawiająca symbol strzałki

    Minimisation of work

    No formwork or reinforcement work required on site

  • Ikona przedstawiająca symbol strzałki

    Connections

    Multiple possibilities for implementing a rigid column/footing connection

  • Ikona przedstawiająca symbol strzałki

    Parameters

    Impermeability and frost resistance as well as resistance to corrosive water and soil

  • Ikona przedstawiająca symbol strzałki

    Accuracy

    High accuracy achieved in the prefabrication plant compared to on-site construction

  • Ikona przedstawiająca symbol strzałki

    Transport handles

    Possibility of moving elements (applies to foundations for advertisements/billboards) thanks to the use of transport handles

TECHNICAL DETAILS

Produkcja stopy fundamentowej

Production process of footing

The process of producing the footings includes the preparation of the moulds the appropriate placement of reinforcement and the pouring of concrete. Once the required strength is achieved, the components are subjected to quality control.

Produkcja stopy fundamentowej

Production capabilities of footing

We produce foundation footings tailored to individual project requirements. We make footings of various shapes – square, rectangular, stepped, trapezoidal and cup-shaped. It is also possible to equip the elements with additional accessories such as dowels, threaded anchors or anchor rails. The only restrictions relate to transport dimensions, which affects the maximum dimensions of the prefabricated product.

Montaż stopy fundamentowej

Design capabilities of footing

The design of prefabricated footings allows great flexibility in adapting the shape and method of connection to the columns. We make both traditional footings and socketed footings, which enable the quick installation of columns. Elements can be adapted to specific structural requirements, including connections to beams and foundation walls.

Montaż stopy fundamentowej

Transport of footing

The footings are prepared for safe transport. Thanks to the built-in transport handles, loading and unloading is effortless. We adapt the dimensions of the elements to the logistical possibilities in order to ensure that they are transported efficiently and safely to the construction site.

Montaż stopy fundamentowej

Installation of footing

The installation of prefabricated footings requires adequate preparation of the subsoil, which should be lowered by a minimum of 10 cm from the bottom of the prefabricated footing. Once the footing is in place and its position confirmed, concrete is fed through the pour holes to fully fill the space around the foundation. The connection to the column is realised by rigid fastening using reinforcing jigs, system threaded connectors or by pouring special mortar in the case of socket feet.
