Balconies

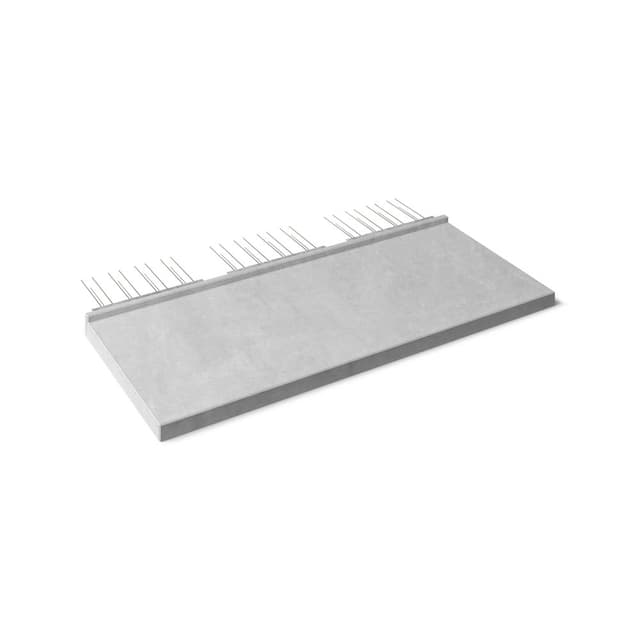

Balcony slab

Prefabricated balcony slabs allow for the design and construction of much more durable and thinner balcony elements. The use of system-specific thermal insulation connectors means that additional insulation of the balcony slabs is not required. The aesthetic surface makes it possible to leave our balcony slabs unfinished.

Use

→ Single- and multi-family residential buildings (as balcony slabs, canopies, cornices)
→ Public buildings

QUALITY
High-quality elements
SYSTEM CONNECTORS
System thermal insulation connectors that compensate for displacements caused by temperature differences and thus counteract scratches
DRAINAGE
Possible drainage to downpipes - elimination of significant drips on vertical edges
DURABILITY
High durability of components in the appropriate frost and water resistance class
SPEED
Speed of construction
FINISHING
Possibility to expose elements in raw concrete, also dyed in mortar

TECHNICAL DETAILS

Prefabrykowana płyta balkonowa w specjalnie przygotowanej formie

Production process of Balcony slab

We produce the balcony panels as individual elements, tailored to the requirements of the project. These can be solid slabs or filigree slabs. The filigree slabs need to be hemmed in on site and concreted to the design thickness. In the case of solid slabs, we build in the accessories included in the design. In the case of balcony slabs made in the negative - we make an anti-slip surface.

Wyprodukowana płyta balkonowa z odwodnieniem

Production capabilities of Balcony slab

The method of finishing the surface of the balcony slabs depends on the investor's preference. We produce the balcony slabs in positive or negative, which means that we can get a high-quality, faced, smooth surface from the mould. The manufactured balcony in the positive is dedicated for further finishing. It has a lower surface that is smooth from the mould and the top is finished with tiles or resins, for example. Balconies made in the negative have a trowelled bottom and the top of the prefab is smooth. In this type of balcony we have the possibility of elevating the edges, including the construction of balustrades. For balconies made in the negative, there is the possibility of using matrices to obtain a textured and high-quality surface of your choice, as well as drainage gullies or swales. Thanks to the individual approach to each project, there are no limits to the dimensions and shapes of the slabs made.

Prefabrykowane płyty balkonowe barwione w masie

Design capabilities of Balcony slab

Balcony slabs are manufactured on the basis of a workshop design developed by the Betard designer or the Ordering Party's designer (taking into account the technological requirements of the BETARD factory). The connection of the balconies to the building structure is carried out using systemic thermal insulation connectors. The design of the balconies is based on the structural and architectural designs of the building and the design for the selection of thermal insulation connectors, drawn up by the manufacturer and approved by the designer.

Płyty balkonowe transportowane z zakładu produkcyjnego Betard

Transport of Balcony slab

Due to the built-in thermal insulation connectors, attention should be paid to the width of the load. Balcony slabs are usually transported by long-haul trucks. They should be stored and transported on wooden spacers or on steel sleepers (made of HEB), the use of which eliminates damage that can occur during loading with a forklift. It is easier to lay several balconies with different geometries on steel sleepers.

Proces montażu prefabyrkowanej płyty balkonowe na podporach

Installation of Balcony slab

The balcony slabs are installed on previously prepared supports. Wet works are limited to the reinforcement and concreting of the ceiling and the rim at the thermal insulation connectors of the balcony. Holes left by transport anchors must be plugged on site with special cement mortar or plugs (PVC, metal, etc.).

(1)
