Beams

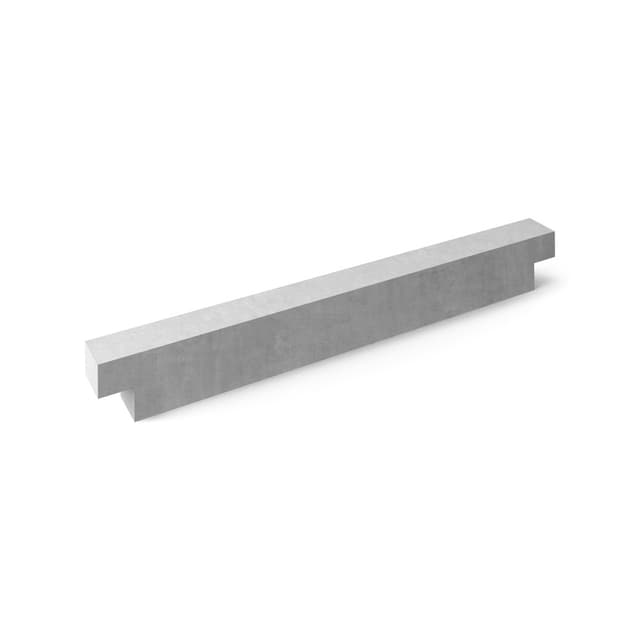

Reinforced concrete beam

Beams are structural elements that can function as simply supported or fixed, depending on the adopted static schemes. They typically receive loads from the floor surface and transfer them as a concentrated force to columns (brackets) or walls.

Grade of concrete
Concrete of grade C20/25 to C50/60, reinforcement steel AIIIN
Speed
Fast work on the construction site
Quality
High quality elements - three moulded surfaces and bevelled edges.
Accessories
Built-in transport handles and accessories for connecting to the structure.
Work on site
Elimination of formwork and reinforcement work at height

TECHNICAL DETAILS

Production process of Reinforced concrete beam

Beams are manufactured in specially prepared moulds with various cross-sections in a horizontal position. In addition to the designed reinforcement, beams may feature the necessary accessories, such as installation sleeves or openings.

Możliwosci produkcyjne belek żelbetowych

Production capabilities of Reinforced concrete beam

We produce two types of beams: solid and partially prefabricated (with protruding stirrup bars) for later connection to a monolithic or filigree floor slab. The elements we offer can be connected to the structure through concrete topping (partially prefabricated elements), support on a column bracket (connection with a pin), or screwed reinforcement joints to connect the reinforcement. The ends of the elements can be shaped with 'notches' to transfer greater transverse forces.

Design capabilities of reinforced concrete beam

We offer beams in any range of cross-sectional dimensions. The length of beams in residential construction is generally up to 14 metres. This is due to the technical design, as well as transport and installation constraints. To prefabricate concrete beams, we use concrete grades from C20/25 to C50/60, and reinforcing steel grade AIIIN.

Transport of reinforced concrete beam

Elements are separated from each other by special spacers in the form of edge beams or wooden spacers. They should be carefully laid one next to the other. In the case of long beams, it may be necessary to use specialist equipment - trailers with adjustable length, known as stretch trailers.

Installation of reinforced concrete beam

Depending on the type of beams, installation may be done by placing the beam on reinforcement bars or using supports — positioning them appropriately and later pouring the connection with the ceiling, for example.
