Tribunes elements

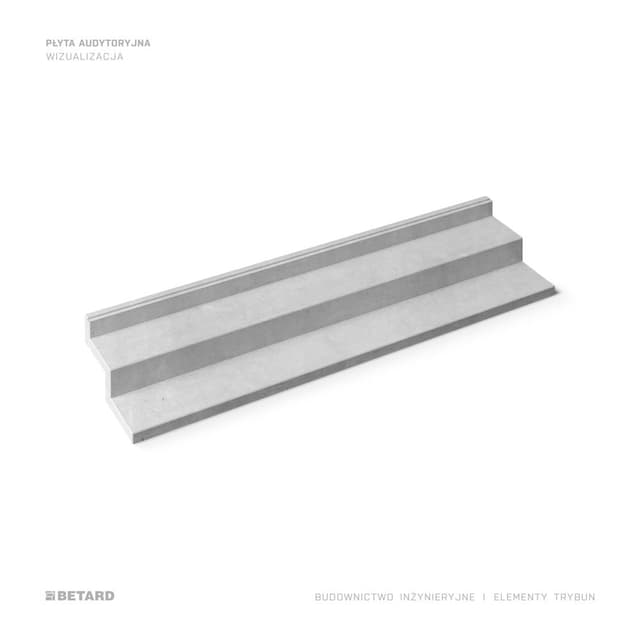

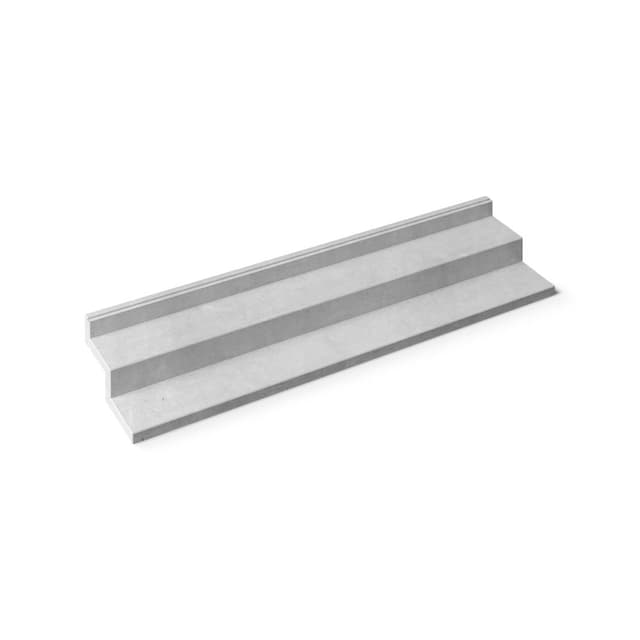

Auditorium slab

Prefabricated auditorium slabs (stands) are structural elements used in sports, cultural and performance venues. They are mounted on beams or 'toothed' walls and allow the installation of spectator seating. The grandstands provide convenient horizontal and vertical communication and in some cases also act as a canopy for the utility and technical parts of the facility.

Use

→ → Sports stadiums
→ → Amphitheatres
→ → Auditoriums
→ → Event halls

Surface
High surface quality of the elements – visible side of the formwork mould
Speed
Speed of construction
Accessories
Used system accessories for chair installation
Parameters
Concrete produced in the pre-fabrication plant ensures adequate waterproofness and frost-resistance
Minimisation of work
Elimination of complex on-site formwork and reinforcement

TECHNICAL DETAILS

Production process of Auditorium slab

The production process includes the preparation of moulds with the required shapes, the placement of reinforcement and the filling of the concrete mixture. In addition to the designed reinforcement, slabs may feature the necessary accessories, such as installation sleeves or openings.

Production capabilities of Auditorium slab

The prefabricated grandstands can be adapted to the specifics of the site, both in terms of dimensions and installation method. We offer solutions for connecting components using mounting angles, mandrels and corrugated tubes. The design also ensures that the locks at the joints are properly shaped, which guarantees the tightness and stability of the entire structure.

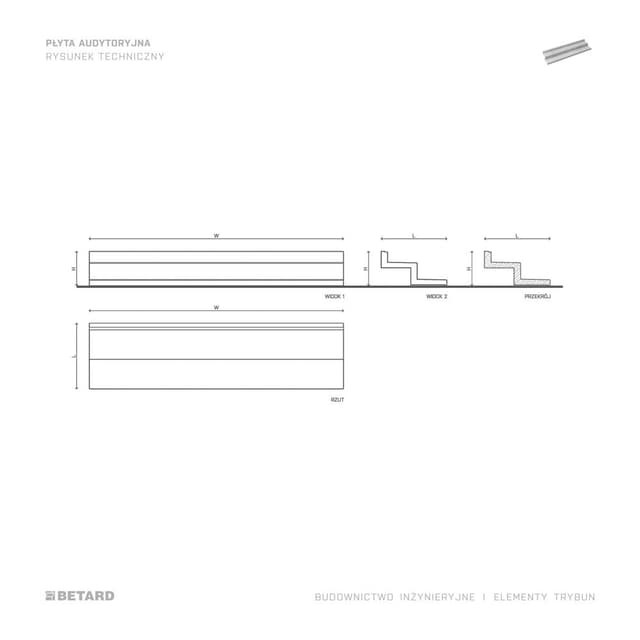

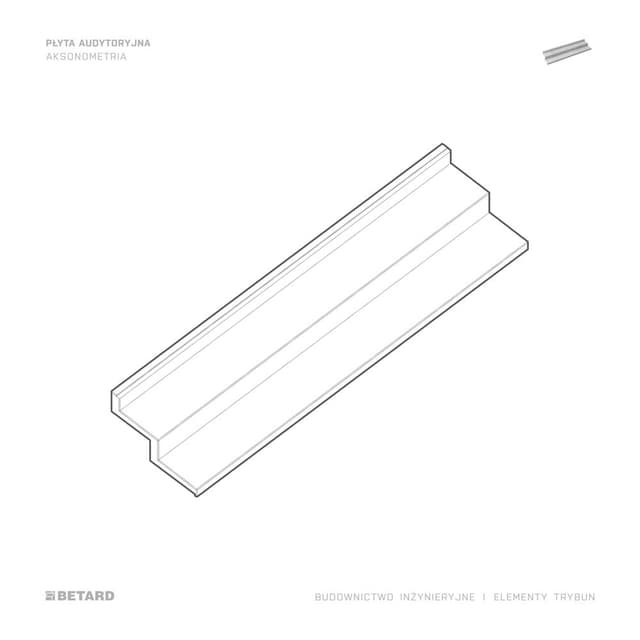

Design capabilities of Auditorium slab

Transport of Auditorium slab

The tribunes, depending on their dimensions, can be transported on standard trailers with sideboards, while long and tall elements may require the use of low-loader trailers with adjustable lengths.

Installation of Auditorium slab

The installation of the prefabricated grandstands is carried out on previously prepared beams or 'toothed' walls. The components are joined according to the design intent and stability is provided by fixing systems such as mounting angles, pins and corrugated tubes. The precise manufacture of the connections and the proper shaping of the locks guarantee tightness and safety in use.
