Columns

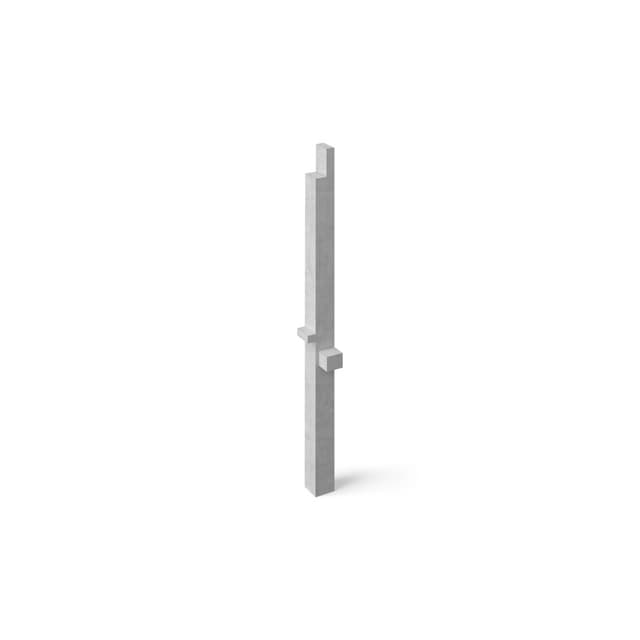

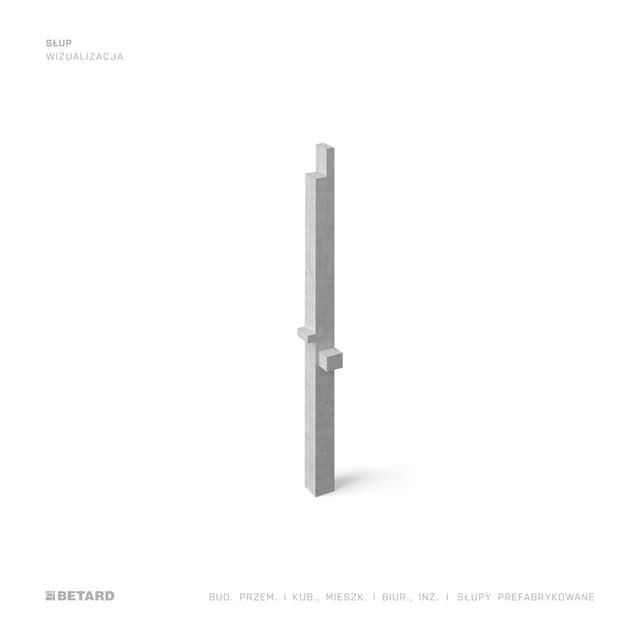

Reinforced concrete column

Columns in residential buildings are most often used in underground garages providing repeatable modules. They are used to support the floors, which in the prestressed version need a sparser grid of columns, resulting in a more comfortable underground floor.

Use

→ Garages
→ Underground storeys
→ Mixed-post-and-wall residential buildings

SPEED
Speed of shell construction, shortening of construction time
REDUCING THE WORKLOAD
Elimination of formwork and reinforcement work on site
QUALITY
High-quality elements, three moulded surfaces, bevelled edges.
ACCESSORIES
The components may include rails for anchoring the façade layers and steel fittings for edge protection.
CONNECTIONS
Columns connected to the foundation using bolted connections do not require installation supports

TECHNICAL DETAILS

Production process of Reinforced concrete column

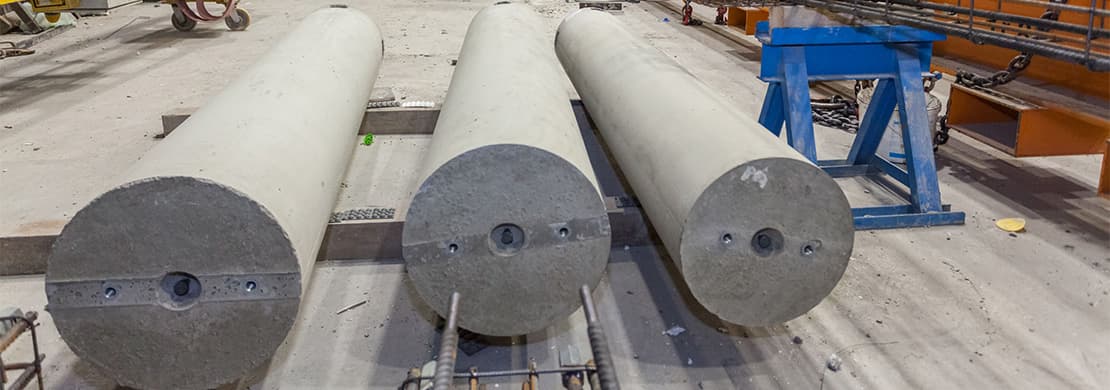

Columns are manufactured in specially prepared moulds with various cross-sections. Rectangular cross-section elements are made in a lying position, while round elements are made in a standing position. In addition to the designed reinforcement, the column may have some necessary accessories inside it, such as: system wall connectors, mounting sleeves, and system column supports.

Production capabilities of Reinforced concrete column

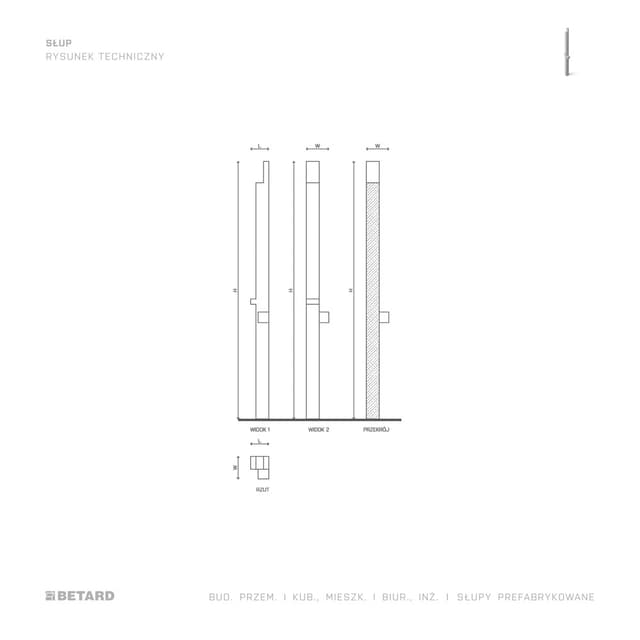

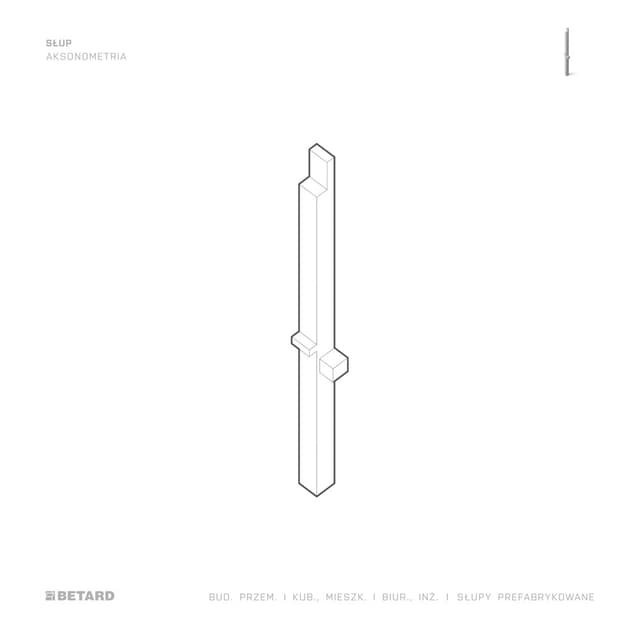

We manufacture columns with a rectangular cross-section, including tapered designs. The side surfaces may additionally have brackets for supporting beams or girders. We are also able to produce columns with a circular cross-section, provided that there is a positive result of an individual analysis, taking into account technological capabilities. Where the columns are adjacent to walls, it is possible to install system connectors within the column to connect it to the wall.

Załadunek prefabrykowanych słupów żelbetowych

Transport of Reinforced concrete column

Columns are transported in a lying position. They should be neatly stacked side by side, separated from each other by special spacers in the form of edge beams or wooden spacers. In the case of long columns, it may be necessary to use specialist equipment, trailers with adjustable length, known as stretch trailers.

Installation of Reinforced concrete column

The installation of precast columns is usually carried out using starting bars fixed in the footing or a systematic bolted joint. When connecting with starting bars, corrugated pipes are embedded in the column and then placed on the bars and filled with high-strength mortar. In the case of a system connection, the base of the column is poured into the precast element, which is then placed on anchor bolts sunk into the foundation. Finally, grout is made to fill the space between the base of the column and the foundation surface.
