MIEJSCE REALIZACJI: NOWA SÓL

PRODUCTION HALL NORD PROPULSION SYSTEMS | NOWA SÓL

For the expansion of the plant of NORD Systemy Napędowe Sp. z o.o. in Nowa Sól, we produced and delivered nearly 500 prefabricated reinforced concrete and prestressed elements.

  • wskaźnik
    +500

    PREFABRICATED REINFORCED AND PRESTRESSED CONCRETE ELEMENTS

  • wskaźnik
    3 months

    LEAD TIME

GALLERY OF FINISHED PROJECTS

Hala przemysłowa o konstrukcji prefabrykowanej z zastosowaniem dźwigarów sprężonych dwuteowych
OPEN PHOTO
Widok na konstrukcję prefabrykowaną: słupy żelbetowe i dźwigary sprężone
OPEN PHOTO
Konstrukcja prefabrykowana hali
OPEN PHOTO
Prefabrykowana konstrukcja hali przemysłowej
OPEN PHOTO
Widok na słupy żelbetowe i dźwigary dachowe
OPEN PHOTO
Konstrukcja prefabrykowanej hali przemysłowej
OPEN PHOTO

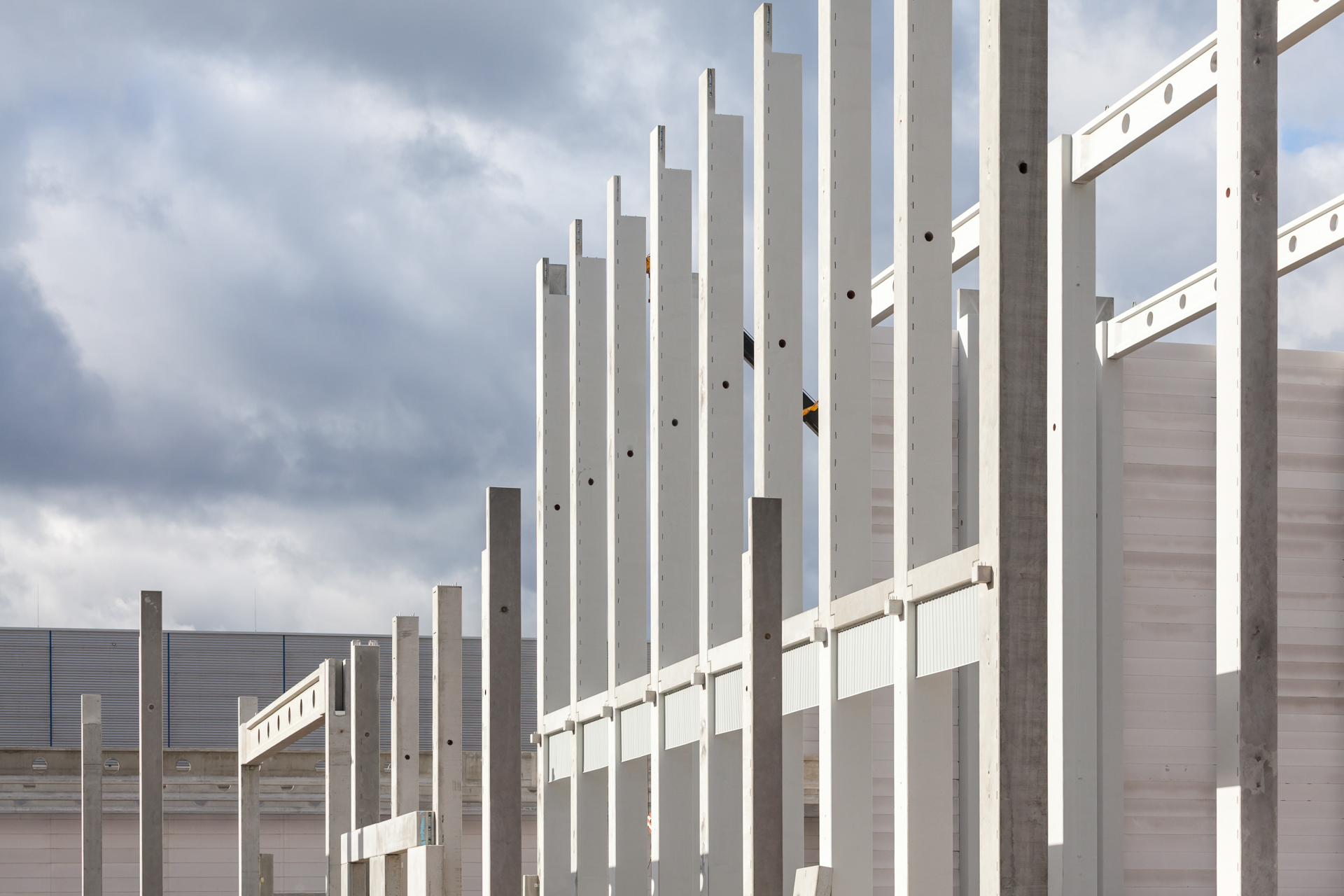

Konstrukcja hali z prefabrykatów betonowych
OPEN PHOTO

Description of execution

For the expansion of the plant of NORD Systemy Napędowe Sp. z o.o. in Nowa Sól, with an area of 12,000 m², we produced and delivered nearly 300 prefabricated reinforced concrete elements, including columns, foundation beams, beams, docks, walls, stairs, more than 120 prestressed prefabricated elements, including girders and beams, as well as 800m² of HCU prestressed floors.


It is worth highlighting the execution of extremely large elements – columns 25m long and weighing 60t and more than 80 girders 20m long made using prestressed technology.

SHARE:

  • Udostępnij pocztą
  • Udostępnij linkedin
  • Udostępnij facebook

PROJECT INFORMATION

(4)

RELATED FINISHED PROJECTS

(6)

RELATED PRODUCTS

Płyta stropowa filigran - pr

Floor elements

Filigree floor slab

SEE

DOWNLOAD DOCUMENTS

PRODUCT FEATURES

Shape

Unlimited possibilities for designing floor surfaces in terms of shape and size

Recesses

Possibility of making the necessary cuts and openings provided for in the documentation

Weight

Low slabs dead load (125-175 kg/m²)

Installation

Installation from a car without intermediate storage possible - ‘installation directly from the car’

Construction site

Adequate low demand for back-up area on site

Optimisation

Reduced labour intensity on site, resulting in shorter construction cycles and lower construction costs

certyfikaty

Certyfikat | Przywory Gajków Środa Śląska | Płyty Stropowe Filigran

certyfikaty

Certyfikat / Długołęka / Płyty Stropowe Filigran

certyfikaty

Certyfikat | Kielce | Płyty Filigran

certyfikaty

Certyfikat | Bydgoszcz | Filigran

deklaracje

dwu Kielce | Płyty stropowe Filigran

deklaracje

dwu | Bydgoszcz | Płyty stropowe Filigran

deklaracje

dwu | Przywory | Płyty stropowe Filigran

deklaracje

dwu | Długołęka | Płyty stropowe Filigran

DOWNLOAD ALL DOCUMENTSPobierz wszystkie
Belka żelbetowa - profil

Beams

Reinforced concrete beam

SEE

DOWNLOAD DOCUMENTS

PRODUCT FEATURES

Grade of concrete

Concrete of grade C20/25 to C50/60, reinforcement steel AIIIN

Speed

Fast work on the construction site

Quality

High quality elements - three moulded surfaces and bevelled edges.

Work on site

Elimination of formwork and reinforcement work at height

Accessories

Built-in transport handles and accessories for connecting to the structure

certyfikaty

Certyfikat | Długołęka Przywory Wieruszów Gajków Kielce2 Środa Śląska | El. prętowe

certyfikaty

Certyfikat | Bydgoszcz | El. prętowe

certyfikaty

Certyfikat | Kielce1 | El. prętowe

deklaracje

dwu | Długołęka | Belki

deklaracje

dwu | Gajków | Belki

deklaracje

dwu | Przywory | Belki

deklaracje

dwu | Wieruszów | Belki

deklaracje

dwu | Kielce1 | Belki

deklaracje

dwu | Bydgoszcz | Belki

certyfikaty

Certyfikat / Długołęka / El. prętowe żelbetowe i sprężane / DE

DOWNLOAD ALL DOCUMENTSPobierz wszystkie
Dźwigar dachowy sprężony - profil

Prestressed roof elements

Roof girder

SEE

DOWNLOAD DOCUMENTS

PRODUCT FEATURES

GRADE OF CONCRETE

Concrete grade min. C50/60, reinforcement steel grade AIIIN, prestressing steel Y1860 S7

SPAN

Large span of structure

LOADS

Carrying heavy loads

COSTS

Low upkeep costs with no maintenance required

FIRE RESISTANCE

Standard 60 min fire resistance - up to 240 min possible

SPEED

Rapid on-site installation - an average of 1,500 m² of construction per installation team per day

certyfikaty

Certyfikat | Długołęka Przywory Wieruszów Gajków Kielce2 Środa Śląska | El. prętowe

deklaracje

dwu | Długołęka | El. prętowe sprężone

deklaracje

dwu | Kielce1 | El. prętowe sprężone

certyfikaty

Certyfikat | Kielce1 | El. prętowe

deklaracje

dwu | Przywory | El. prętowe sprężone

DOWNLOAD ALL DOCUMENTSPobierz wszystkie
Słup żelbetowy, prefabrykowany - profil

Columns

Reinforced concrete column

SEE

DOWNLOAD DOCUMENTS

PRODUCT FEATURES

SPEED

Speed of shell construction, shortening of construction time

REDUCING THE WORKLOAD

Elimination of formwork and reinforcement work on site

QUALITY

High-quality elements, three moulded surfaces, bevelled edges

ACCESSORIES

The components may include rails for anchoring the façade layers and steel fittings for edge protection

CONNECTIONS

Columns connected to the foundation using bolted connections do not require installation supports

certyfikaty

Certyfikat | Kielce1 | El. prętowe

certyfikaty

Certyfikat | Bydgoszcz | El. prętowe

certyfikaty

Certyfikat | Długołęka Przywory Wieruszów Gajków Kielce2 Środa Śląska | El. prętowe

deklaracje

dwu | Długołęka | Słupy

deklaracje

dwu | Bydgoszcz | Słupy

deklaracje

dwu | Kielce1 | Słupy

deklaracje

dwu | Gajków | Słupy

deklaracje

dwu | Przywory | Słupy

deklaracje

dwu | Wieruszów | Słupy

DOWNLOAD ALL DOCUMENTSPobierz wszystkie
Biegi schodowe prefabrykowane - profil

Staircase elements

Stair flights and landings

SEE

DOWNLOAD DOCUMENTS

PRODUCT FEATURES

Speed

Rapid construction on site

Quality

High component quality and repeatability

Formwork-free technology

Elimination of complicated, time-consuming formwork and reinforcement on the construction site as well as formwork removal

Site traffic

Providing traffic during the construction of storeys

Surface

Lower surface does not require plastering (can be painted)

Adaptation

Possibility of forming the component in the reverse position (negative)

certyfikaty

Certyfikat | Długołęka Przywory Wieruszów Kielce2 Środa Śląska | El. biegów schodowych

certyfikaty

Certyfikat | Kielce I | El. biegów schodowych

certyfikaty

Certyfikat | Długołęka Przywory Wieruszów Kielce2 Środa Śląska | El. Biegów schodowych

certyfikaty

Certyfikat | Bydgoszcz | El. klatek schodowych

certyfikaty

Certyfikat / Długołęka / Biegi schodowe / DE

deklaracje

dwu | Bydgoszcz | El. klatek schodowych

deklaracje

dwu | Długołęka | El. biegów schodowych

deklaracje

dwu | Kielce I | El. biegów schodowych

deklaracje

dwu | Wieruszów | El. biegów schodowych

deklaracje

dwu | Przywory | El. biegów schodowych

DOWNLOAD ALL DOCUMENTSPobierz wszystkie
Belka sprężona - profil

Beams

Prestressed beam

SEE

DOWNLOAD DOCUMENTS

PRODUCT FEATURES

Quality

High quality elements - three moulded surfaces and bevelled edges.

Speed

Fast work on the construction site

Grade of concrete

Concrete grade min. C50/60, reinforcement steel AIIIN, prestressing steel Y1860 S7

Elimination of work

Elimination of formwork and reinforcement work at height

Accessories

Built-in transport handles and accessories for connecting to the structure

certyfikaty

Certyfikat / Długołęka / El. prętowe żelbetowe i sprężane / DE

certyfikaty

Certyfikat | Kielce1 | El. prętowe

certyfikaty

Certyfikat | Bydgoszcz | El. prętowe

certyfikaty

Certyfikat | Długołęka Przywory Wieruszów Gajków Kielce2 Środa Śląska | El. prętowe

deklaracje

dwu | Przywory | El. prętowe sprężone

deklaracje

dwu | Długołęka | El. prętowe sprężone

deklaracje

dwu | Kielce1 | El. prętowe sprężone

DOWNLOAD ALL DOCUMENTSPobierz wszystkie
